50 Ohm COAXIAL CABLE
Foamed PE insulated copper conductor, Al foil shield & braid screened
Coaxial cable, PE outer sheathed.
Application
This is a 50 Ohm Coaxial Cable for telecommunication intended for outdoor use with the frequency range of 4 Ghz.

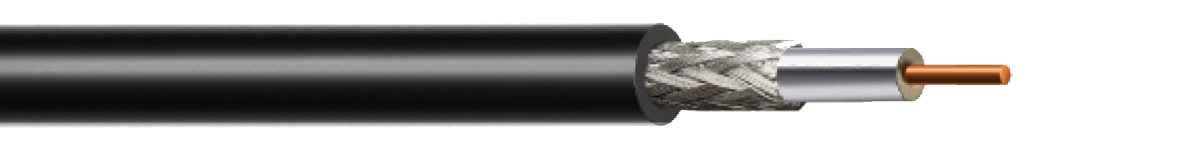

Typical Cross section
Electrical Characteristics:
| Characteristics Impedence | 50 ± 2☒ |
| Velocity of propagation | 85% |
| Capacitance | 78 nF/ Km |
| Loop Resistance | Max. 19.0☒ / Km |
| Attenuation at 140, 350, 900, 1800 & 2000 MHz |
≤ 12, 18, 23, 32 ,34 dB /100 Mtr. |
| Dielectric Strength | Withstands 1.5 KV, 2 sec. |
Cable Diameter , Standard Length & Packing:
| Cable Diameter | : 7.60 mm (Nominal) |
| Available Packaging | : 500 mtr ± 10% spools |
