SPECIALITY CABLES
HYBRID CABLE

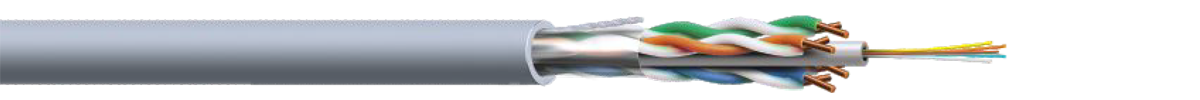

4 PAIR UTP CAT 5e WITH 2 NO. OF G-652D FIBRE
4 Pair Unshielded Twisted Pair (UTP) 100 Ohm Data Cable, 24 AWG (0.5mm)
Solid Bare Copper Conductors, Polyethylene Insulation along with 2 Fibre as
per G-652 D Rec placed inside loose tube made of PBTP filled with thixotropic
jelly, Core wrapped with polyester tape, PVC /FRLSZH Jacket, Rip Cord.
Application
The cable is particularly suitable for indoor star –network and internal wiring in connector. Suitable for Ethernet Applications and compatible with all known connection systems.
Typical Cross section
Electrical Characteristics:
| Conductor Resistance | Max. 9.38 O /100m |
| Conductor Resistance Unbalance | Max. 5 % |
| Mutual Capacitance | Max. 5.6 nF/100m |
| Capacitance Earth Unbalance | Max. 330 pF/100m |
| Propagation Delay @ 1 MHZ, 10 MHz & 100 MHz |
Max. 570, 545, 538 ns/100 m |
| Propagation Delay Skew 1 – 100 MHz | Max. 45 ns/100 m |
Optical Characterisitics:
| Attenuation @ 1310 nm | Max. 0.38 dB/Km |
| Attenuation @ 1550 nm | Max. 0.25 dB/Km |
| Dispersion, 1288 – 1339 nm | Max 3.5 ps/nm.km |
| Dispersion, 1550 nm | Max 18 ps/nm.km |
| PMD | Max 0.2 ps/sqrt(km) |
Other Characterisitics:
| Tensile Force Installation | Max. 0.20 KN |
| Tensile Force Installed | Max. 0.10 KN |
| Temperature range – Operation | -40°C to + 60°C |
| Temperature range – Storage | -40°C to + 70°C |
| Temperature range – Installation | -15°C to + 40°C |
Features:
Colour Code:
CU. Pair
|
Fibre
|
Cable Diameter , Standard Length & Packing:
| Cable Diameter | : 6.0 ± 0.5 mm |
| Cable Weight | : 40 Kg/Km Nominal |
| Available Packaging | : 500 mtr spool ± 10% |
| Available Colour | : Grey or As Per Customer Requirement |
Technical Details
| Freq (MHZ) | Return Loss (dB) | Insertion Loss (dB/100m) | NEXT (dB) | PSNEXT (dB) | ACRF ELFEXT (dB) | PSACRF [PSELFEXT] (dB) |
| Min. | Max. | Min. | Min. | Min. | Min. | |
| 1.0 | 20.0 | 2.0 | 65.3 | 62.3 | 63.8 | 60.8 |
| 4.0 | 23.0 | 4.1 | 56.3 | 53.3 | 51.8 | 48.8 |
| 8.0 | 24.5 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 |
| 10.0 | 25.0 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 |
| 16.0 | 25.0 | 8.2 | 47.2 | 44.2 | 39.7 | 36.7 |
| 20.0 | 25.0 | 9.3 | 45.8 | 42.8 | 37.8 | 34.8 |
| 25.0 | 24.3 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 |
| 31.25 | 23.6 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 35.4 | 27.9 | 24.9 |
| 100 | 20.1 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 |
Note:
Bi-directional Testing for Return Loss, NEXT & PSNEXT
