SPECIALITY CABLES
RG 6 - 75 OHM COAXIAL CABLE
Application
This Coaxial Cable suitable for Security/CCTV in Indoor and outdoor installation.

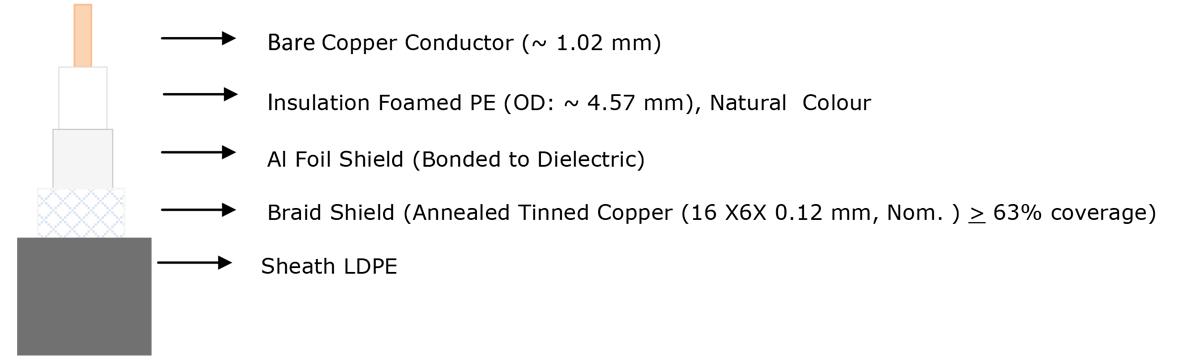

Cable Cross- Section
Construction Materials:
| Jacket Color | Black |
| Jacket Material | LDPE |
| Braid Material | Tinned copper ,nominal dia-36AWG(0.12mm) |
| Shield Tape Material | Aluminum foil |
| Dielectric Material | Foam PE |
| Inner Conductor Material | BC wire,18AWG |
Dimensions:
| Diameter Over Dielectric | 4.57 mm ± 0.2 mm |
| Diameter Over Jacket | 6.9 mm ± 0.30 |
| Inner Conductor OD | 1.02 mm ± 0.10 mm |
| Flex Resistance | 2000 Cycle (Min.) |
| Outer Conductor OD | 5.38 mm± 0.2 mm |
Packing: |
100m,Mutiple Coils in Box |
| Total Weight | 39 kg/km |
| Cable Length | 100m/305m |
Electrical Performance:
| Frequency | Attenuation (dB/100 m) (Nominal value) |
| 470MHz | 14.3dB |
| 862MHz | 20.5dB |
| 1000MHz | 22.0dB |
| 1350MHz | 26.0dB |
| 1750MHz | 30.0dB |
| 2150MHz | 33.5dB |
Environmental Specifications:
| Temperature rating: | -40°C to +75°C |
Electrical Specifications:
| Cable Impedance | 75± 3Ω |
| Capacitance | 52 nf/km(nom.) |
| DC Resistance, Inner Conductor | 21.32 ohm/km (nom.) |
| DC Resistance, Outer Conductor | 8.20 ohm/km (nom.) |
| DC Test Voltage | 2.5 kv |
| Jacket Spark Test Voltage (rms) | 5.0 kv |
| Structural Return Loss | ≥ 15db@850mhz-3000mhz ≥ 18db@450mhz-850mhz ≥ 23db@5mhz-450 mhz |
| Velocity | 85%(nom.) |
Mechanical Specifications:
| Minimum Bend Radius, loaded | 20 times |
| Minimum Bend Radius, unloaded | 10 times |
