STRUCTURED CABLES > CAT6A

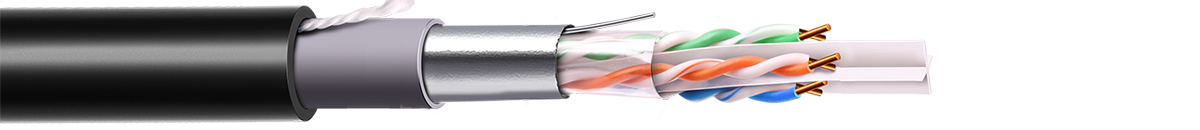

4 PAIR CAT 6A 23AWG F/UTP
DOUBLE SHEATH CABLE

Application

These structure cable suitable for Ethernet Applications and compatible with all known connection Systems, Ideal for high performance workstation applications including voice/data systems, Digital video, Broadband and Voice over internet protocol etc.

Ipsum

Typical Cross section

Electrical Characteristics:

Conductor Resistance@20°C Max. 9.38 Ω/100m
Conductor Resistance Unbalance Max. 5 %
Mutual Capacitance Max. 5.6 nF/KM
Capacitance Earth Unbalance Max. 330 pF/100m
Insulation Resistance@ 500v DC/1 minute Min. 5000 MOhm km
Dielectric Strength DC 2500V/2s
Propagation Delay @ 1 , 10 , 100 & 500 MHz Max. 570, 545, 538 & 536 ns/100 m
Propagation Delay Skew 1 –500 MHz Max. 50 ns/100 m

Description:

Conductor : 23 AWG Solid Bare Copper Conductor
Insulation : Polyethylene(HDPE), Thickness 0.28mm(nom)
Pair Screening : Two Insulated conductors Twisted together
Laid Up : Four pairs stranded over X-Filler into cable core
Wrapping : Overall PET tape wrapping
Overall Screening : AL/PET Mylar tape + Drain wire
Inner sheath : LSZH/PVC, Colour: Black or grey
Outer Sheathing : Polyethylene/LSZH/PVC as per request
Colour : Black or per request
Cable Diameter : 9.2mm ± 0.5 mm

Features:

  • Generally Complies to the requirements of TIA/EIA 568 C.2
  • Packaged in wooden Spool.
  • Cable Characterized up to 500 MHz,
  • Overall Mylar tape Screening
  • ATC Drain wire.
  • Excellent EMC performance
  • Double sheath Construction
  • LSZH Properties ; IEC 60332-1, IEC 60754-1&2 and IEC 61034

Technical Details

Freq (MHZ) Attenuation (dB/100m) NEXT (dB) PSNEXT (dB) ACRF (ELFEXT)(dB) PSACRF [PSELFEXT] (dB) Return Loss
(dB)
Max. Min. Min. Min. Min. Min.
1 2.3 65 62 63.3 60.3 19
4 4.2 63 60.5 51.2 48.2 19
8 5.8 58.2 55.6 45.2 42.2 19
10 6.5 56.6 54 43.3 40.3 19
16 8.2 53.2 50.6 39.2 36.2 18
20 9.2 51.6 49 37.2 34.2 17.5
25 10.2 50 47.3 35.3 32.3 17
31.25 11.5 48.4 45.7 33.4 30.4 16.5
62.5 16.4 43.4 40.6 27.3 24.3 14
100 20.9 39.9 37.1 23.3 20.3 12
200 30.1 34.8 31.9 17.2 14.2 9
250 33.9 33.1 30.2 15.3 12.3 8
300 37.4 31.7 28.8 13.7 10.7 7.2
400 43.7 28.7 25.8 11.2 8.2 6
500 49.3 26.1 23.2 9.3 6.3 6

Note:

Supplied cable 70m shall be passed Fluke Channel Test as per ANSI/TIA 568-C.2.

Colour Code:

Pair 1 : White/Blue Strip -Blue
Pair 2 : White/Orange Strip -Orange
Pair 3 : White/Green Strip-Green
Pair 4 : White/Brown Strip-Brown

Mechanical Properties:

Bending radius : 10 x Overall diameter (min.)
Pulling Force : Max 130 N

Standard Length & Packing:

305m Spool Dimension (FxBxT) : 22x14x14 Inch
500m Spool Dimension (FxBxT) : 24x14x14 Inch

Thermal Characteristics:

Operating Temperature : - 20°C to +60°C
Installation Temperature : -0°C to +50°C
