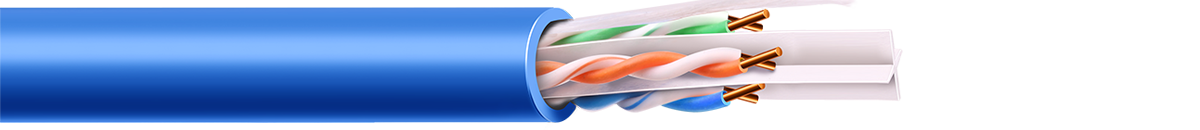

CAT6 4 PAIR 23 AWG UTP FRPVC CABLE
Application
These structure cable suitable for Gigabyte Ethernet Applications and compatible with all known connection Systems, Ideal for high performance workstation applications including voice/data systems, Digital video, Broadband and Voice over internet protocol etc.

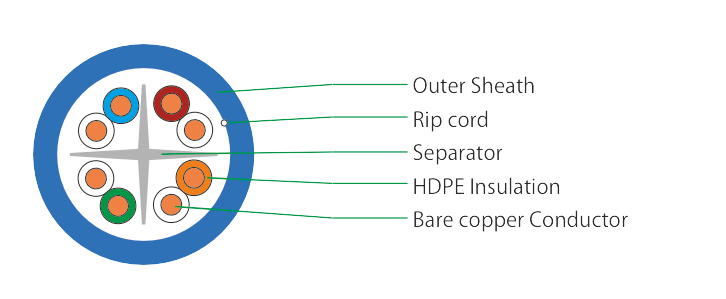

Typical Cross section
Electrical Characteristics:
| Conductor Resistance@20°C | Max. 9.38 Ω/100m |
| Conductor Resistance Unbalance | Max. 5 % |
| Mutual Capacitance | Max. 5.6 nF/100m |
| Capacitance Earth Unbalance | Max. 330 pF/100m |
| Voltage rating | Max. 538 ns/100 m |
| Dielectric strength | 70%(nom) |
| Insulation Resistance@500VDC, 1 minute | Max. 45 ns/100 m |
| Propagation Delay @ 1, 10, 100 & 250 MHz | 72 VDC |
| Characteristic Impedance (1-250 MHz | 100 ± 15Ω |
| Nominal velocity of Propagation | 0.69 |
| Propagation DeLay Skew 1 – 250 MHz | Max. 45 ns/100 m |
Description:
| Conductor | : 23AWG Solid bare copper conductor |
| Insulation | : High Density Polyethylene, Diameter 0.98 ± 0.05mm) |
| Pairs | : Two Insulated conductors Twisted together to form pair ,lay ≤ 38 |
| Twisting | : 4 pairs laid together over X-Separator, lay length < 130mm |
| Jacket | : FRPVC Compound |
| Colour | : Grey |
| Cable Diameter | : 6.0 ± 0.3 mm |
Features:
Technical Details
| Freq (MHZ) | Attenuation (dB/100m) | NEXT (dB) | PSNEXT (dB) | ACRF (ELFEXT)(dB) | PSACRF [PSELFEXT] (dB) | Return Loss (dB) |
| Max. | Min. | Min. | Min. | Min. | Min. | |
| 1 | 2.1 | 65 | 62 | 63.3 | 60.3 | 19 |
| 4 | 4 | 63 | 60.5 | 51.2 | 48.2 | 19 |
| 8 | 5.7 | 58.2 | 55.6 | 45.2 | 42.2 | 19 |
| 10 | 6.3 | 56.6 | 54 | 43.3 | 40.3 | 19 |
| 16 | 8 | 53.2 | 50.6 | 39.2 | 36.2 | 18 |
| 20 | 9 | 51.6 | 49 | 37.2 | 34.2 | 17 |
| 25 | 10.1 | 50 | 47.3 | 35.3 | 32.3 | 17 |
| 31.25 | 11.4 | 48.4 | 45.7 | 33.4 | 30.4 | 17 |
| 62.5 | 16.5 | 43.4 | 40.6 | 27.3 | 24.3 | 14 |
| 100 | 21.3 | 39.9 | 37.1 | 23.3 | 20.3 | 12 |
| 200 | 31.5 | 34.8 | 31.9 | 17.2 | 14.2 | 9 |
| 250 | 36 | 33.1 | 30.2 | 15.3 | 12.3 | 8 |
Note:
Supplied cable shall be passed Fluke channel Test. Cable measurements are made on100m length at 20ºC . Length pulled out of their packages and released on a non-conductive surface as described in ANSI/TIA-568-C.2.
Colour Code:
| Pair 1 | : White/Blue Strip -Blue |
| Pair 2 | : White/Orange Strip -Orange |
| Pair 3 | : White/Green Strip-Green |
| Pair 4 | : White/Brown Strip-Brown |
Standard Length & Packing:
| Standard length | : 305m |
| Packing | : Pull out box |
| Dimension (L:B:H) | : 16 x 16 x 8" |
Mechanical Properties:
| Bending radius | : 4 x overall diameter (min.) |
| Breaking Strength | : 400 N (max.) |
Thermal Characteristics:
| Operating Temperature | : - 20°C to +70°C |
