STRUCTURED CABLES > CAT6A

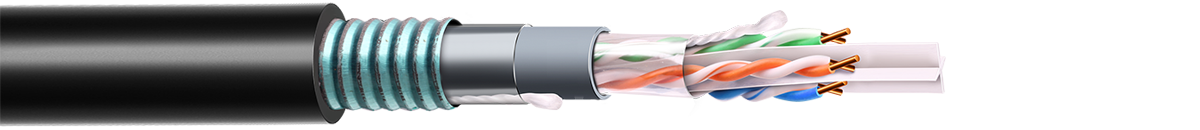

4 PAIR CAT6A 23AWG UTP ARMOURED CABLE

Application

Cat6A UTP Cable 4 Pairs is suitable for Horizontal Cabling Systems. Used to transmit High Speed Data, Voice and Video signals both digital & analog through entire CHANNEL. With 500 MHz operational bandwidth it well exceeds the requirement of ANSI/TIA 568-C.2 and ISO 11801.

Ipsum

Typical Cross section

Electrical Characteristics:

Conductor Resistance Max. 9.38 Ω/100m
Conductor Resistance Unbalance Max. 5 %
Mutual Capacitance Max. 5.6 nF/100m
Capacitance Earth Unbalance Max. 330 pF/100m
Insulation Resistance 5000 Mohm.km(min)
Dielectric Strength 2.5 Kv DC/2s
Characteristics Impedance: 100±15Ω
Velocity of propagation 69%(nom)
Propagation DeLay Skew 1 – 500 MHz Max. 45 ns/100 m

Description:

Conductor : 23AWG Solid Annealed Bare Copper Conductor
Insulation : High Density Polyethylene,
Pair : Two Insulated conductors Twisted together to form pair
Twisting : 4 pairs laid together and separated by PE Cross element
Wrapping : Overall PET tape
Inner Sheath : PVC, thickness 0.4mm(min)
Armour : ECCS, Corrugated Tape ; > 0.125mm
Jacket : PE - Black
Cable Diameter : 11.5 ± 0.5 mm

Features:

  • Reference standard TIA/EIA 568 C.2 (Category 6a) & ISO/IEC 11801 2nd ed(Class Ea)
  • Packaged in Wooden Spool.
  • True 23 AWG Solid Bare Copper
  • 305 Meters Reel. 500 Meters Reel in Option
  • 50m Channel” Performance Warranty

Technical Details

Freq (MHZ) Attenuation (dB/100m) NEXT (dB) PSNEXT (dB) ACRF (ELFEXT)(dB) PSACRF [PSELFEXT] (dB) Return Loss
(dB)
Max. Min. Min. Min. Min. Min.
1 2.3 65 62 63.3 60.3 19
4 4.2 63 60.5 51.2 48.2 19
8 5.8 58.2 55.6 45.2 42.2 19
10 6.5 56.6 54 43.3 40.3 19
16 8.2 53.2 50.6 39.2 36.2 18
20 9.2 51.6 49 37.2 34.2 17.5
25 10.2 50 47.3 35.3 32.3 17
31.25 11.5 48.4 45.7 33.4 30.4 16.5
62.5 16.4 43.4 40.6 27.3 24.3 14
100 20.9 39.9 37.1 23.3 20.3 12
200 30.1 34.8 31.9 17.2 14.2 9
250 33.9 33.1 30.2 15.3 12.3 8
300 37.4 31.7 28.8 13.7 10.7 7.2
400 43.7 28.7 25.8 11.2 8.2 6
500 49.3 26.1 23.2 9.3 6.3 6

Note:

Supplied cable shall be passed Fluke Channel Test as per ANSI/TIA 568-C.2

Colour Code:

Pair 1 : White/Blue Strip -Blue
Pair 2 : White/Orange Strip -Orange
Pair 3 : White/Green Strip-Green
Pair 4 : White/Brown Strip-Brown

Standard Length & Packing:

305m Spool Dimension (LxBxH) : 24x14x14 Inch

Mechanical Properties:

Maximum tensile strength of jacket (N/mm^2) : 13.1
Minimum Bending radius : 20x Diameter (mm)@-20°C
Pulling Force : 115 N (max.)

Thermal Characteristics:

Operating Temperature : - 20°C to +60°C
Installation Temperature : - 20°C to +60°C
