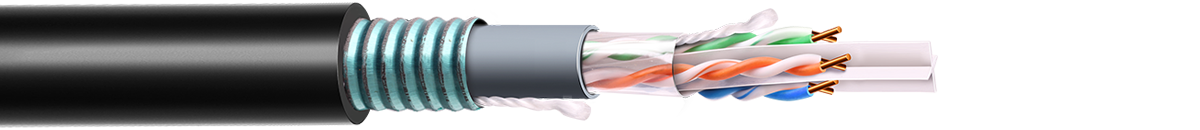

4PAIR CAT6 23AWG UTP ARMOURED CABLE

Application

Enhanced performance cable for transmission of high-speed data, digital and analogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet (1000 baseT) standard. Operates at bandwidth of 250MHz. This cable meets the requirements of TIA Cat6 Channel Spec (50M)

Ipsum

Typical Cross section

Electrical Characteristics:

Conductor Resistance@20°C Max. 9.38 Ω/100m
Conductor Resistance Unbalance Max. 5 %
Mutual Capacitance @1KHZ Max. 5.6 nF/KM
Insulation Resistance min. 5000 MΩ.km
High voltage 2.5 Kv DC/1 min
Capacitance Earth Unbalance Max. 3300 pF/km
Propagation Delay @ 1, 10, 100 &250 MHz Max. 570, 545,538 & 536ns/100 m 536ns/100 m
Propagation DeLay Skew 1 – 250 MHz Max. 45 ns/100 m

Description:

Conductor : 23 AWG Solid bare copper conductor
Insulation : High Density Polyethylene
Pairs : Two Insulated conductors Twisted together to form pair
Twisting : 4 pairs laid together and separated by cross element
Inner Sheath : PVC/LSZH, compound
Armour : ECCS, Corrugated Tape ; ≥ 0.125mm
Jacket : HDPE, Colour: Black
Cable Diameter : 10.5 ± 0.5 mm

Features:

  • Generally complied to ANSI/TIA-568-C.2:2009 Category 6.& ISO/IEC 11801, EN 50173
  • Performance specification up to 250 MHz.
  • UV resistance outer sheath ,
  • Inner Sheath Flame Retardant (IEC60332-1)
  • Suitable for Outdoor application.
  • Rugged Double sheath construction.
  • RoHS Complaint.
  • Steel tape (ECCS) Armour provides Excellent Mechanical protection.

Technical Details

Freq (MHZ) Attenuation (dB/100m) NEXT (dB) PSNEXT (dB) ACRF (ELFEXT)(dB) PSACRF [PSELFEXT] (dB) Return Loss
(dB)
Max. Min. Min. Min. Min. Min.
1 2.1 65 62 63.3 60.3 19
4 4 63 60.5 51.2 48.2 19
8 5.7 58.2 55.6 45.2 42.2 19
10 6.3 56.6 54 43.3 40.3 19
16 8 53.2 50.6 39.2 36.2 18
20 9 51.6 49 37.2 34.2 17
25 10.1 50 47.3 35.3 32.3 17
31.25 11.4 48.4 45.7 33.4 30.4 17
62.5 16.5 43.4 40.6 27.3 24.3 14
100 21.3 39.9 37.1 23.3 20.3 12
200 31.5 34.8 31.9 17.2 14.2 9
250 36 33.1 30.2 15.3 12.3 8

Note:

Supply cable guaranteed to pass 50m Channel test as per ANSI/TIA-568-C.2 Category 6, testing configuration as one cable segment and 2 connector direct attached fluke tester

Colour Code:

Pair 1 : White/Blue Strip -Blue
Pair 2 : White/Orange Strip -Orange
Pair 3 : White/Green Strip-Green
Pair 4 : White/Brown Strip-Brown

Mechanical Properties:

Min Bending radius : 20x Diameter (mm)
Pulling Force : 11.5Kg (max.)

Standard Length & Packing:

305m Spool Dimension (LxBxH) : 20 x10x12 Inch

Thermal Characteristics:

Operating Temperature : - 20°C to +70°C
