STRUCTURED CABLES > CAT6

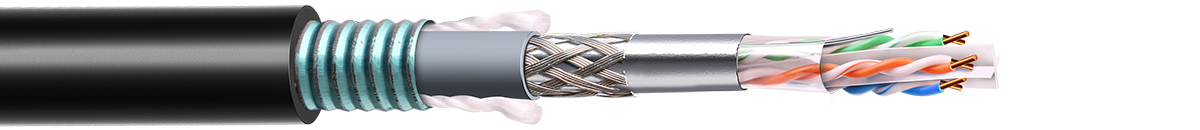

4PAIR CAT6 23AWG SFTP ARMOURED CABLE

Applications

Enhanced performance cable for transmission of high-speed data, digital and analogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet (1000 base) standard.

This cable meets the requirements of TIA Cat6 Channel Spec (70M)

Ipsum

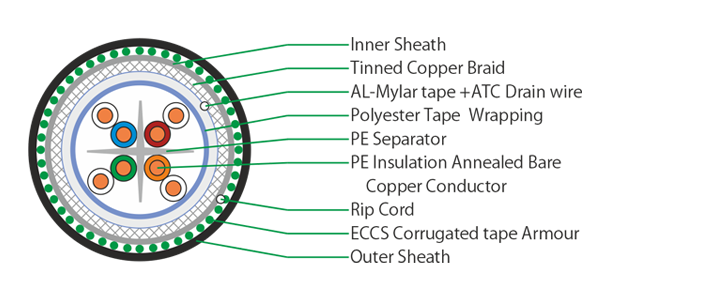

Typical Cross section

Electrical Characteristics:

Conductor Resistance @20°C Max. 93.8 Ω/Km
Conductor Resistance Unbalance Max. 5 %
Mutual Capacitance @1KHZ Max. 56 nF/Km
Insulation Resistance Min. 5000 MΩ.km
High voltage 2.5 Kv DC/2s
Capacitance Earth Unbalance Max. 3300 pF/km
Propagation Delay Skew Max. 50 ns/100 m
Characteristic Impedance 100 ± 15Ω

Description:

Conductor : 23 AWG Solid Annealed Bare Copper Conductors.
Insulation : HDPE , Diameter-1.08+/-0.05mm
Twisting : 4 pairs laid up over polyethylene cross separator
Wrapping : Overall Polyester Tape,
HF-Screening : AL-PET Tape (Mylar)
Braiding : Tinned copper conductor,
Rip cord : Rip cord, applied under the jacket
Inner Sheath : LSZH/ PVC Compound, as per request
Colour : Black or Grey, per request
Armour : ECCS corrugated tape Armour
Outer Sheath : LSZH/PVC/PE as per request
Cable Diameter : 12.0 +/- 1.5mm

Features:

  • NSI/TIA- 568- C.2-2009 and ISO/ IEC 11801 – 2nd Edition.
  • Cable Tested upto 650Mhz
  • Overall Mylar tape Screened core.
  • ATC overall braid with Drain wire.
  • ECCS tape Armour provides Excellent Mechanical protection
  • Flame Properties ; IEC 60332-1, IEC 60754-1&2 and IEC 61034

Technical Details

Freq (MHZ) Attenuation (dB/100m) NEXT (dB) PSNEXT (dB) ACRF (ELFEXT)(dB) PSACRF [PSELFEXT] (dB) Return Loss
(dB)
Max. Min. Min. Min. Min. Min.
1 2.1 65.0 62.0 63.3 60.3 19
4 4.0 63.0 60.5 51.2 48.2 19
8 5.7 58.2 55.6 45.2 42.2 19
10 6.3 56.6 54.0 43.3 40.3 19
16 8.0 53.2 50.6 39.2 36.2 18
20 9.0 51.6 49.0 37.2 34.2 17
25 10.1 50.0 47.3 35.3 32.3 17
31.25 11.4 48.4 45.7 33.4 30.4 17
62.5 16.5 43.4 40.6 27.3 24.3 14
100 21.3 39.9 37.1 23.3 20.3 12
200 31.5 34.8 31.9 17.2 14.2 9
250 36.0 33.1 30.2 15.3 12.3 8
300 40.1 31.7 28.8 13.7 10.7 7
400 47.8 29.6 26.6 11.2 8.2 6
500 55.1 27.9 24.8 9.3 6.3 5
600 61.95 26.5 23.4 7.7 4.7 4
650 65.31 25.9 22.8 7.0 4.0 4

Note:

Supplied cable guaranteed to pass 70m Fluke Channel Test as per ANSI/TIA 568-C.2.

Colour Code:

Pair 1 : Blue + White -Blue
Pair 2 : Orange+White -Orange
Pair 3 : Green+White -Green
Pair 4 : Brown+White -Brown

Standard Length & Packing:

305m Spools Dimension (FxBxT) : 24 x 14 x 14 Inch

Mechanical Properties:

Bending radius : 20 x Diameter (min.)
Pulling Force : 11.5 kgs (max.)

Thermal Characteristics:

Operating Temperature : - 20°C to +60°C
