STRUCTURED CABLES > CAT7

4 PAIR CAT 7 23AWG F/FTP CABLE

Application

These cable Support Ethernet applications requiring Class D to F (10GBase-T, 1000Base-T, 100Base-TX, ATM) as well as VoIP, PoE Performance Specified up to 600Mhz.

Ipsum

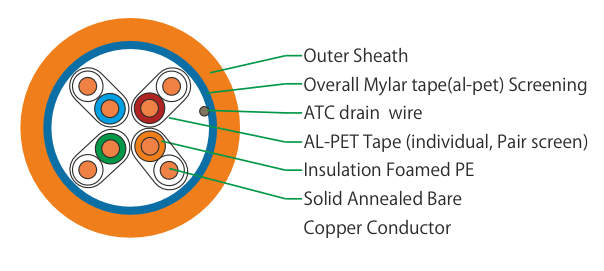

Typical Cross section

Electrical Characteristics:

Conductor Resistance @20 deg. Max. 14.5 Ω/100m
Conductor Resistance Unbalance Max. 5 %
Capacitance Earth Unbalance Max. 1600 pF/Km
Insulation Resistance@500VDC Min. 5000 M.Ohm km
Dielectric Strength DC 1.5kv/2s
VOP Nom 70%
Propagation Delay Skew Max. 45 ns/100 m
Characteristics Impedance 100 Ω, ± 25 Ω

Description:

Conductor : 23AWG Solid Annealed Bare Copper Conductor
Insulation : Foam Polyethylene, nominal diameter 1.4mm
Pairs : Each pair wrapped with Aluminium/Polyester (Mylar) Tape
Laid Up : Four Individually Screened pairs stranded into cable core
Drain wire : ATC nominal diameter 26AWG
Outer Sheath Colour : Grey or per request
Outer Sheathing : LSZH or PVC as per request
Cable Diameter : 7.5 ± 0.50 mm

Technical Details

Freq (MHZ) Attenuation (dB/100m) NEXT (dB) PSNEXT (dB) ACRF (ELFEXT)(dB) PSACRF [PSELFEXT] (dB) Return Loss
(dB)
Max. Min. Min. Min. Min. Min.
1 4 65 62 65 62 19
16 8.1 65 62 57.5 54.5 18
100 20.8 62.9 59.9 44.4 41.4 12
250 33.8 56.9 53.9 37.8 34.8 8
500 49.3 52.4 49.4 32.6 29.6 8
600 54.6 51.2 48.2 31.3 28.3 8

Note:

Supplied cable shall be passed 70m Fluke Channel Test.

Features:

  • ISO/IEC-11801, Class F / IEC 61156-5: Category 7
  • LSZH Properties: IEC 60332-1, IEC 61034 ,IEC 60754-1&2
  • Packaged in wooden Spool.
  • Cable Characterized up to 600 MHz
  • Individually Screened pairs.
  • Overall Mylar screen
  • ATC drain wire

Colour Code:

Pair 1 : White -Blue
Pair 2 : White -Orange
Pair 3 : White -Green
Pair 4 : White -Brown

Mechanical Properties:

Bending radius : 8 x overall diameter (min.)
Pulling Force : Max 130 N

Thermal Characteristics:

Operating Temperature : -10°C to +60°C
Installation Temperature : -0°C to +50°C

Standard Length & Packing:

Packing Length : 305m
Spool Dimension(FxBxT) : 14x 6x12''(Dimension in Inches)
