STRUCTURED CABLES > CAT6A

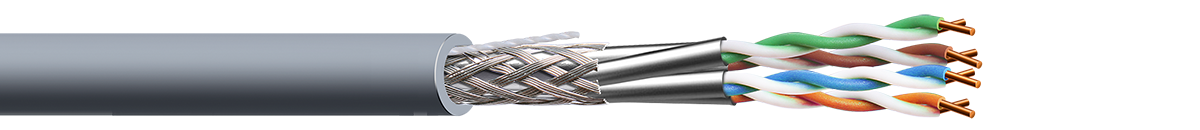

4 PAIR CAT 6A 23AWG S/FTP LSZH CABLE

Application

These structure cable suitable for Gigabyte Ethernet Applications and compatible with all known connection Systems, Ideal for high performance workstation applications including voice/data systems, Digital video, Broadband and Voice over internet protocol etc.10Base-T; 100Base-T; 1000Base-T;10GBase-T

Ipsum

Typical Cross section

Electrical Characteristics:

Conductor Resistance Max. 9.38 Ω/100m
Conductor Resistance Unbalance Max. 5 %
Capacitance Earth Unbalance Max. 1600 pF/Km
Insulation Resistance@500VDC Min. 5000 M.Ohm km
Dielectric Strength DC 1500V/2s
VOP Nom 70%
Propagation Delay Skew Max. 45 ns/100 m
Characteristics Impedance 100 Ω, ± 25 Ω

Description:

Conductor : 23AWG Solid Annealed Bare Copper Conductor
Insulation : Foam Polyethylene, nominal diameter 1.35mm
Pair Screening : Each pair wrapped with Aluminium/Polyester (Mylar) Tape
Laid Up : Four Individually Screened pairs stranded into cable core
Overall Screening : Al Alloy/ATC braiding +ATC drain wire, coverage ≥30%
Outer Sheathing : PE/LSZH/PVC per request
Colour : Grey / black or per request
Cable Diameter : 7.3 ± 0.50 mm

Features:

  • TIA/EIA 568 C.2 (Category 6a) & ISO/IEC 11801 2nd ed(Class Ea)
  • Packaged in wooden Spool.
  • Cable Characterized up to 500 MHz,
  • Performance Designed to Support 10GB/S Ethernet requirements
  • Individually Screened pairs.

Technical Details

Freq (MHZ) Attenuation (dB/100m) NEXT (dB) PSNEXT (dB) ACRF (ELFEXT)(dB) PSACRF [PSELFEXT] (dB) Return Loss
(dB)
Max. Min. Min. Min. Min. Min.
1 2.3 65 62 63.3 60.3 19
4 4.2 63 60.5 51.2 48.2 19
8 5.8 58.2 55.6 45.2 42.2 19
10 6.5 56.6 54 43.3 40.3 19
16 8.2 53.2 50.6 39.2 36.2 18
20 9.2 51.6 49 37.2 34.2 17.5
25 10.2 50 47.3 35.3 32.3 17
31.25 11.5 48.4 45.7 33.4 30.4 16.5
62.5 16.4 43.4 40.6 27.3 24.3 14
100 20.9 39.9 37.1 23.3 20.3 12
200 30.1 34.8 31.9 17.2 14.2 9
250 33.9 33.1 30.2 15.3 12.3 8
300 37.4 31.7 28.8 13.7 10.7 7.2
400 43.7 28.7 25.8 11.2 8.2 6
500 49.3 26.1 23.2 9.3 6.3 6

Note:

Supplied cable shall be passed 70m Fluke

Colour Code:

Pair 1 : White/Blue Strip -Blue
Pair 2 : White/Orange Strip -Orange
Pair 3 : White/Green Strip-Green
Pair 4 : White/Brown Strip-Brown

Standard Length & Packing:

305m Spool Dimension(FxBxT) : 14x 16x12 Inch

Mechanical Properties:

Bending radius : 8 x overall diameter (min.)
Pulling Force : Max 130 N

Thermal Characteristics:

Operating Temperature : -20°C to +60°C
Installation Temperature : -0°C to +50°C
Flammability Test : IEC 60332-1
Acid Gas Emission Test : IEC 60754-1 & 2
Smoke Density Test : IEC 61034-2
