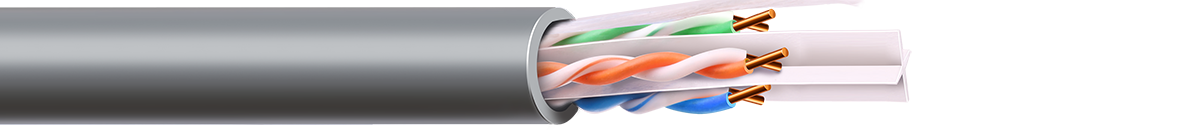

4 PAIR CAT6 24 AWG UTP CABLE

Application

Horizontal cabling networks for transmission of high speed data, digital and analog, voice and video signals over LANs. Supports gigabit Ethernet (1000 Base-T) standard suitable for noisy environments, high EMI interference surroundings and complies to the requirement of ANSI/TIA-568-C.2 and ISO/IEC 11801.

Ipsum

Typical Cross section

Electrical Characteristics:

Conductor Resistance Max. 9.38 Ω/100m
Conductor Resistance Unbalance Max. 5 %
Nom Mutual Capacitance Max. 5.6 nF/100m
Capacitance Earth Unbalance Max. 330 pF/100m
Maximum Delay @ 100 MHZ Max. 538 ns/100 m
Nominal Velocity of Propagation 69%(nom)
Propagation DeLay Skew 1 – 250 MHZ Max. 45 ns/100 m
Maximum Intended Operating Voltage 72 VDC
Characteristic Impedance (1-250 MHz) 100 ± 15Ω

Description:

Conductor : 24AWG Solid bare copper conductor
Insulation/td> : High Density Polyethylene.
Insulation diameter : 0.95 ± 0.03mm
Pair : Two Insulated conductors Twisted together to form pair,
Cabling : All pairs are assembled making the core cable. It shall be used a central element (filler /slot) made of a thermoplastic material to separate all 4 pairs.
Jacket : PVC/LSZH, Compound
Colour : Grey or as per request
Rip Cord : Longitudinally applied below the Jacket.
Cable Diameter : 5.8 ± 0.30 mm

Features:

  • Generally Complied ANSI/TIA-568-C.2 (Category 6),ISO/IEC 11801 2nd ed(Class E)
  • Supports all applications designed to operate over Category 6 or lower rated systems
  • Performance verified upto 250MHz.
  • Spool in box Packaging
  • UL Listed , CM rated
  • ROHS Complaint.

Technical Details

Freq (MHZ) Attenuation (dB/100m) NEXT (dB) PSNEXT (dB) ACRF (ELFEXT)(dB) PSACRF [PSELFEXT] (dB) Return Loss
(dB)
Max. Min. Min. Min. Min. Min.
1 2.1 65 62 63.3 60.3 19
4 4 63 60.5 51.2 48.2 19
8 5.7 58.2 55.6 45.2 42.2 19
10 6.3 56.6 54 43.3 40.3 19
16 8 53.2 50.6 39.2 36.2 18
20 9 51.6 49 37.2 34.2 17
25 10.1 50 47.3 35.3 32.3 17
31.25 11.4 48.4 45.7 33.4 30.4 17
62.5 16.5 43.4 40.6 27.3 24.3 14
100 21.3 39.9 37.1 23.3 20.3 12
200 31.5 34.8 31.9 17.2 14.2 9
250 36 33.1 30.2 15.3 12.3 8

Note:

Supplied cable guaranteed to pass 90m Fluke Channel Test as per ANSI/TIA 568-C.2.

Colour Code:

Pair 1 : White/Blue Strip -Blue
Pair 2 : White/Orange Strip -Orange
Pair 3 : White/Green Strip-Green
Pair 4 : White/Brown Strip-Brown

Mechanical Properties:

Bending radius : 4 x overall diameter (min.)
Breaking Strength : 400 N (max.)

Standard Length & Packing:

305m Plastic Reel in Carton : 13 x 10 x 14 Inch

Thermal Characteristics:

Operating Temperature : - 20°C to +70°C
